Single sign on - SSO options

SSO is available as a paid Add-on for any CloudControl device plan or Enterprise DevSpace plan.

SSO is currently NOT available for White-label instances of signageOS Box.

signageOS supports the vast majority of SSO options using the Okta/Auth0 service.

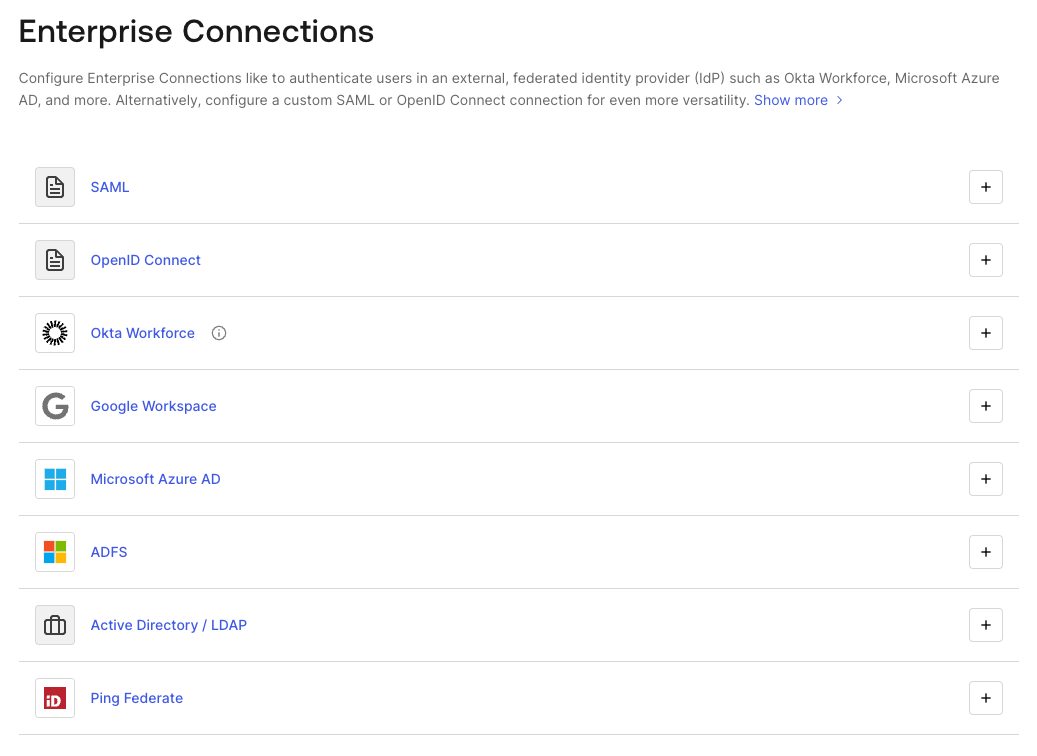

Enterprise Connections like to authenticate users in an external, federated identity provider (IdP) such as Okta Workforce, Microsoft Azure AD, and more. Alternatively, configure a custom SAML or OpenID Connect connection for even more versatility.

SSO service is always enabled on the Company level, allowing you to define:

• SSO protocol
• Company-owned domains
• Default user's roles

A list of all supported SSO options can be found on the Auth0 website: https://marketplace.auth0.com/features/sso-integrations

Configuring Single Sign-On (SSO): Identity provider (IdP) setup guide

This guide details the steps your Identity Provider (IdP) administrator must take to configure a SAML 2.0 Single Sign-On (SSO) connection with our service.

The process is divided into two parts: The information you send us, and the configuration you perform on your system.

1. Information to send us (before setup)

To begin, please send us the following unique identifier so we can generate our Service Provider (SP) configuration details:

Required from you	Purpose	Example
Proposed connection name	A unique, clear name for this SSO connection (e.g., Your Company Name, plus the IdP used)	Acme-Corp-Azure-AD

2. Information we send you (For your configuration)

Once we receive your proposed connection name, we will generate the following required details and send them to your administrator. These identify us as the service you are connecting to.

Provided by us	Your IdP field name	Example
Assertion Consumer Service (ACS) URL	Reply URL / Single Sign-On URL	Signageosauth0.amy.dev.signageos.io/login/callback?connection=Acme-Corp-Azure-AD
Entity ID	Audience URI / SP Entity ID	urn:auth0:sos-amy:Acme-Corp-Azure-AD

3. Mandatory configuration on your Identity provider (IdP)

Your administrator must now create and configure a new SAML application within your IdP's management portal (e.g., Azure AD, Okta, Google Workspace).

Configure the connection details

You will use the ACS URL and Entity ID provided by our team.

1. Create New Application: Start by creating a new SAML 2.0 application/connection within your IdP (e.g., "Add Gallery App")
2. Input our Details: Enter the following values in the corresponding fields:
   • ACS URL (Reply URL): Paste the ACS URL we provided
   • Entity ID (Audience URI): Paste the Entity ID we provided
3. Optional Fields:
   • Start URL / Single Sign-On URL: This field is usually left blank for an SP-initiated flow

Configure user attribute mapping

The SAML response must include the user's email address so we can identify them in our system.

1. Locate Attributes/Claims: Navigate to the Attributes, Claims, or User Mapping section of your IdP setup
2. Define Email Attribute: Configure a claim that maps the user's profile email address to a specific attribute name
   • Goal: The value sent must be the user's unique email address
   • Example: Map the user's email address to an attribute named EmailAddress

4. Final Information to send back to us

Once your IdP configuration is complete and saved, please extract the following three credentials and securely send them to our technical team to finalize the connection on our side:

We will confirm receipt of these details, complete our final setup, and then coordinate a test login with you.

Required by us	Description	Source on your IdP
1. Sign In URL (SSO URL)	The specific URL your IdP generates for initiating the Single Sign-On process	Often labeled SSO URL, IdP Login URL, or SAML Endpoint
2. X.509 Signing Certificate	Your IdP's public signing certificate. This is used to verify the integrity of the SAML message	Often provided as a downloadable .cer, .pem, or .txt file, or as a string of text
